Registration drift
Small lateral errors can create colour-to-colour registration issues and downstream trimming waste.
Printing & Label Converting

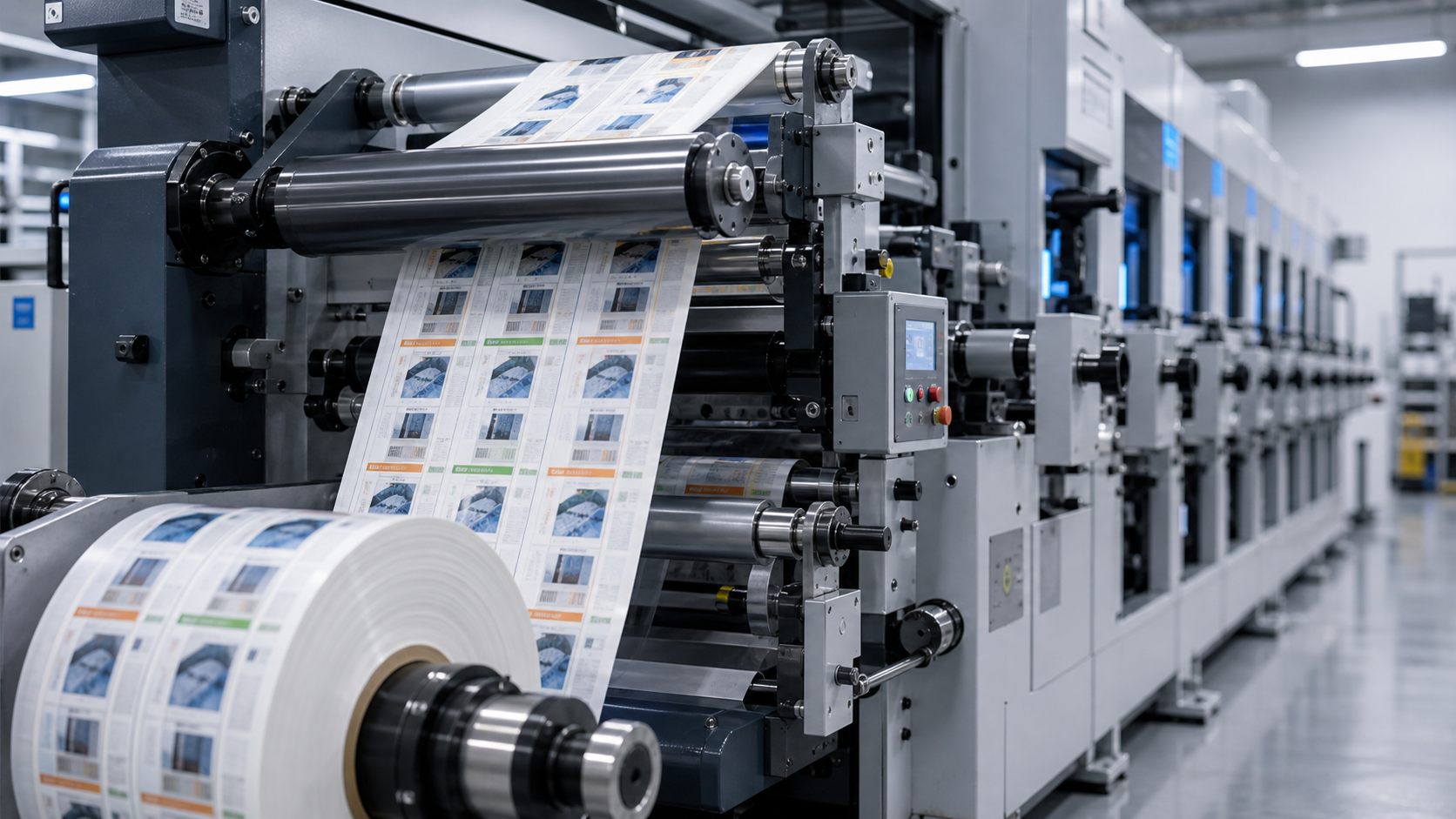

Web Guiding and Tension Control for Printing Lines
Printing quality depends on steady web tracking, controlled tension and repeatable registration through unwind, print, inspection and rewind sections.
Control Challenges
Where print quality is lost
Unstable unwind tension
Changing roll diameter can affect web tension and print repeatability if the unwind zone is not controlled.
Sensor target variation
Printed marks, contrast changes, transparent films and paper edges may require different sensor choices.
Recommended Configuration
Typical KRD system layout
EPC-A12
Touchscreen web guide controller for edge, line, center and serpentine correction.
View EPC-A12
PS-400S
Photoelectric sensor for opaque substrates, printed marks and contrast-based guiding.
View Sensor

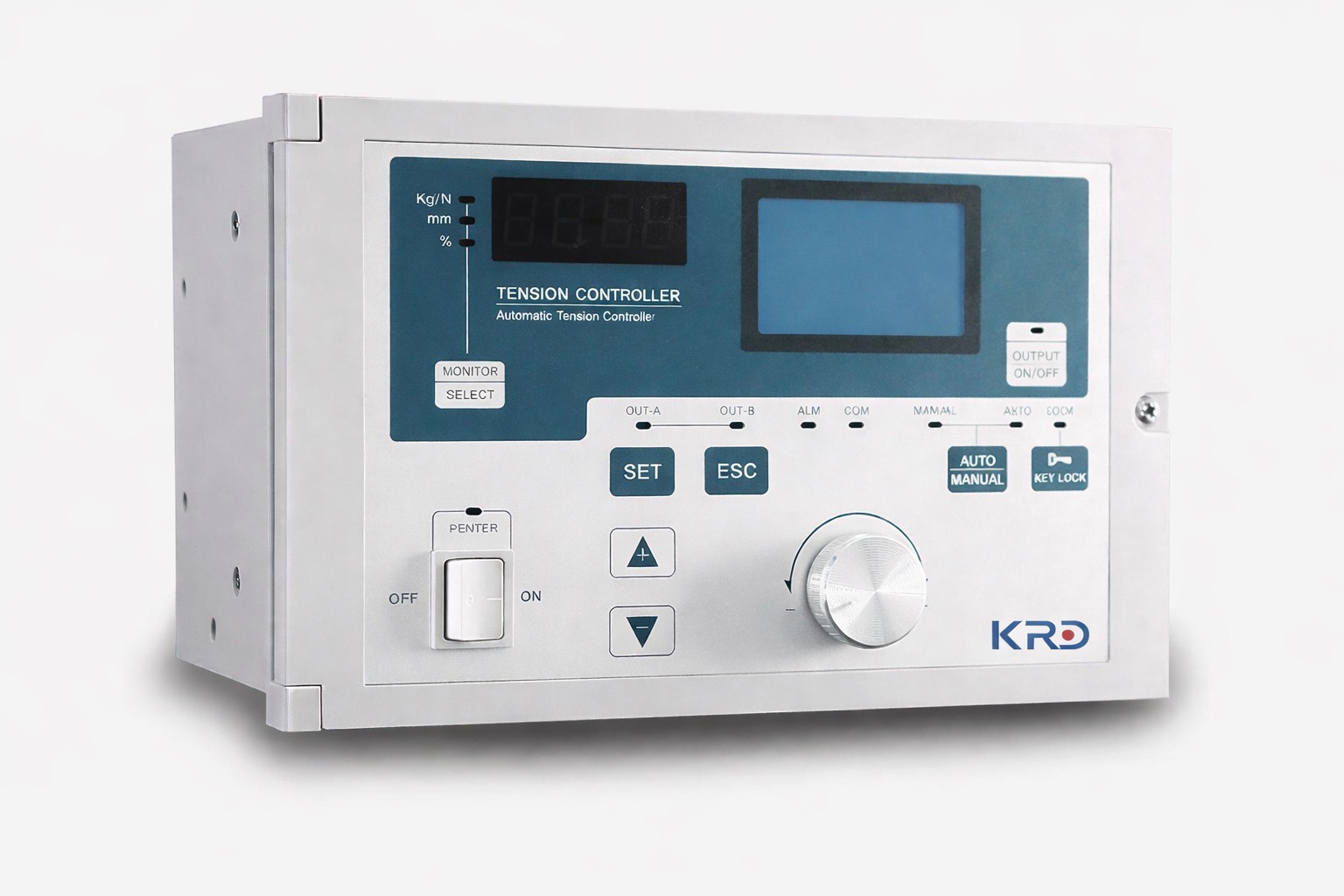

KTC828A
Closed-loop tension controller for unwind, process and rewind sections.
View KTC828AApplication Support
Contact KRD Automation for a customized solution
Share your substrate, web width, print speed, correction position and sensor target. KRD can recommend the controller, sensor and actuator package for your press.
