Edge Guide System for Film, Paper, Packaging and Printing Lines
This edge guide system page is designed for manufacturers that need edge tracking, line tracking and center guiding in a compact retrofit-friendly solution for web deviation correction.
Applications
Edge Guide System Applications for Industrial Web Handling
Edge guide systems are often selected when customers need practical lateral correction without redesigning the entire machine around a larger guiding architecture.
Printing Machines
Track edge or printed line position to support registration-sensitive jobs.
Packaging Lines
Stabilize flexible packaging webs where compact correction hardware is preferred.
Coating Machines
Keep coated materials aligned through long spans, traction sections and rewind stations.
Film Production
Guide film edges consistently through winding, laminating and conversion steps.
Lithium Battery Production
Support foil and electrode material tracking with automatic deviation correction.
System Components
Edge Guide System Components
The structure is kept compact, but it still requires coordinated control, sensing and correction hardware to deliver dependable automatic steering.
Controller
Compact controllers manage edge tracking logic, offset settings, direction correction and machine-level integration.
Sensor
Photoelectric, ultrasonic or line-tracking sensors detect edge position and provide continuous feedback.
Actuator
Correction frames, guide rollers or servo linear mechanisms move the web path back to target position.
Drive or Mechanical Interface
Retrofit projects may use matched actuator assemblies or compact drive packages depending on available machine space.
Key Benefits
Why Industrial Teams Use This Edge Guide System
Retrofit suitability, correction stability and simple deployment matter just as much as raw accuracy when buyers evaluate an edge guide system for existing equipment.
Precise Web Alignment
Correct web deviation before it disrupts slitting, coating, printing or winding.
Stable Correction
Reduce drift and operator intervention during continuous production runs.
PLC / Modbus Compatibility
Support easier OEM integration and retrofit communication with host controls.
Easy Installation
Compact architecture simplifies retrofitting on machines with limited available space.
High-Speed Response
Fast edge correction helps maintain stable alignment even when line speed changes.
Customizable
Choose edge, line or center guiding strategy based on machine layout and material behavior.
Related Products
Recommended Products for This Solution
These product links support edge guiding and retrofit work, with additional internal references to Industries, Web Guiding System and sensor comparison guidance.

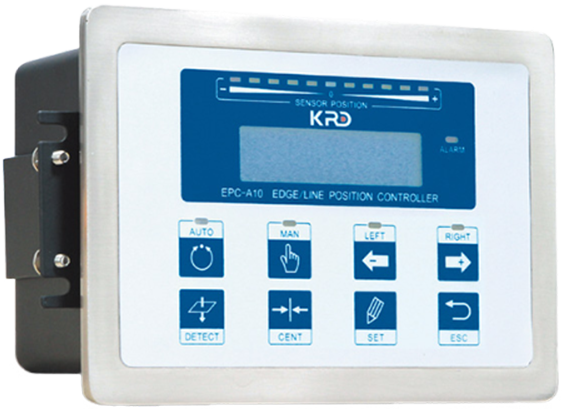

EPC-A10
Compact controller for space-conscious guiding projects and retrofits.
PS-400S
Edge detection sensor for reliable correction on standard opaque materials.

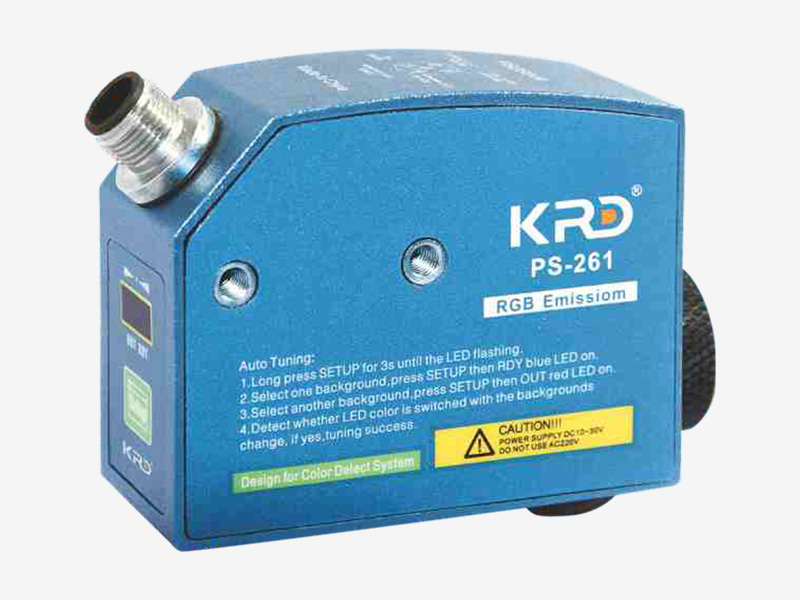

PS-260 / 261
Photoelectric tracking options for line-based guiding and printed material applications.

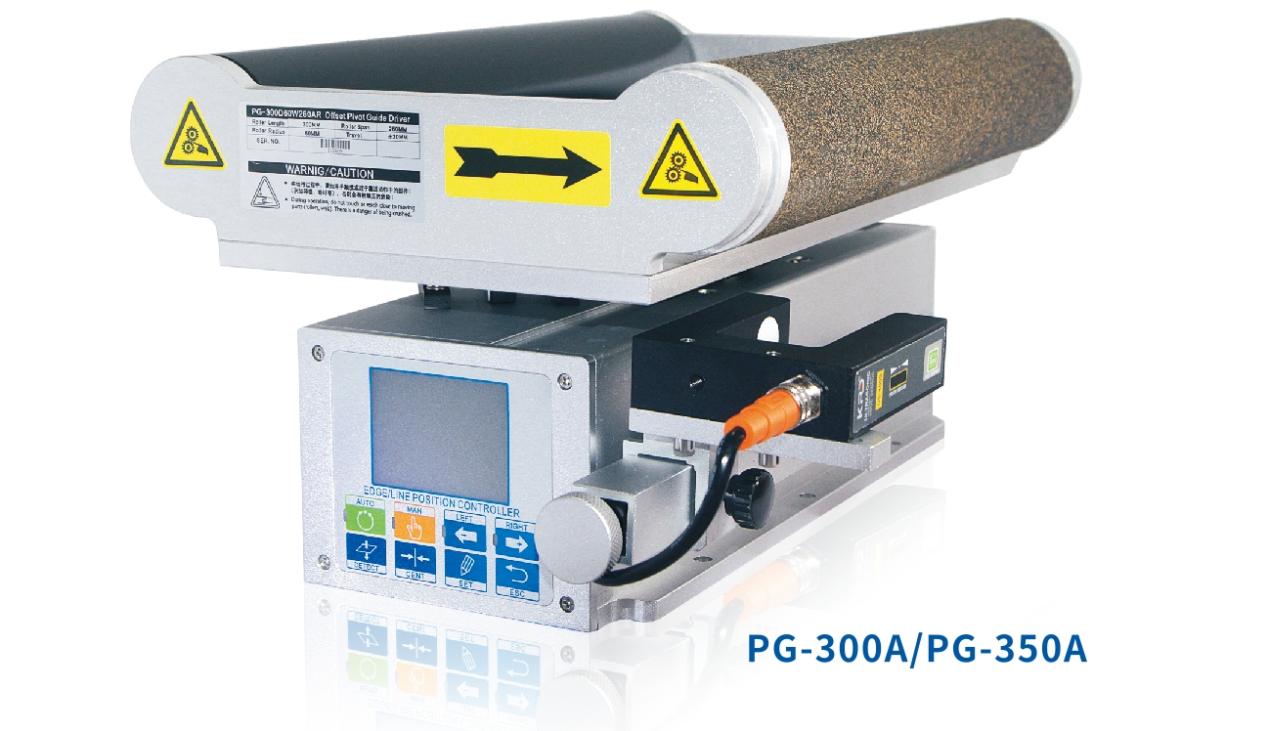

PG Series
Integrated correction assemblies for compact OEM installation and retrofit upgrades.
Final CTA
Need help selecting the right system for your machine?
Tell us whether you need edge tracking, line tracking or center guiding, plus your web width, line speed and installation constraints. We will suggest the right edge guide system for your machine.
